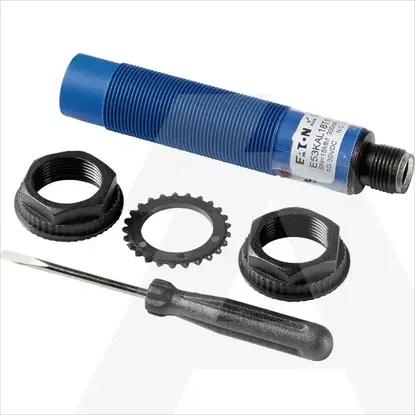

E53KAL18T110ED
Code: 1201432
ManufacturerEaton
Catalog number134763
TypeE53KAL18T110ED
CategoryCapacitive proximity switch
EAN code4015081316151
Details
- •Sensors
- •Capacitive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Material housingPlastic
Suitable for safety functionsNo
Coating housingOther
CascadableNo
Switching frequency250Hz
With status indicationYes
Type of interface for safety communicationNone
Number of semiconductor outputs with signalling function1
Type of electric connectionPlug-in connection
Number of protected contact energized outputs0
Number of protected semiconductor outputs0
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of contact energized outputs with signalling function0
Type of switch functionNormally open contact
Explosion safety category for gasNone
Mechanical mounting condition for sensorNot flat
Rated control supply voltage Us at DC10 - 30V
Type of actuationOther
Construction type housingCylinder, screw-thread
Explosion safety category for dustNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Type of interfaceNone
Compression-resistantNo
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Switching distance15mm
Type of switching outputNPN
Supply voltage10 - 30V
Width sensor0mm
Diameter sensor18mm
Height of sensor0mm
Length of sensor80mm
