Details
- •Low-voltage industrial components

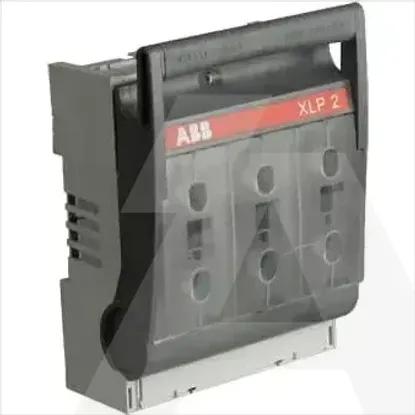

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Degree of protection (IP), front sideIP30
Rated permanent current Iu315A
Conditioned rated short-circuit current Iq50kA
Number of poles3
Suitable for fusesNH2
Motor drive integratedNo
Version as main switchYes
Version as emergency stop installationNo
With error protectionNo
Position control elementFront side
Type of control elementOther
Suitable for floor mountingNo
Version as safety switchYes
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Rated operation power at AC-23, 400 V-kW
Suitable for busbar mountingYes
Rated short-time withstand current lcw-kA
Suitable for front mountingNo
Equipped with connectorsYes
Type of electrical connection of main circuitCable clamp
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP101892R0002 | XLP2-6BC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
Cable entry
Other
Degree of protection (IP), front side
IP30
Rated permanent current Iu
315A
Conditioned rated short-circuit current Iq
50kA
Number of poles
3
Suitable for fuses
NH2
Motor drive integrated
Version as main switch
Version as emergency stop installation
With error protection
Position control element
Front side
Type of control element
Other
Suitable for floor mounting
Version as safety switch
Max. rated operation voltage Ue AC
690V
Motor drive optional
Rated operation power at AC-23, 400 V
-kW
Suitable for busbar mounting
Rated short-time withstand current lcw
-kA
Suitable for front mounting
Equipped with connectors
Type of electrical connection of main circuit
Cable clamp
