Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth70.5mm
Rated current1A
Release characteristicC
Voltage typeAC
Rated voltage230V
Frequency50 - 60Hz
Width in number of modular spacings1
Rated insulation voltage Ui440V
Over voltage category3
Pollution degree2
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Number of protected poles1
Current limiting class3
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Additional equipment possibleYes
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

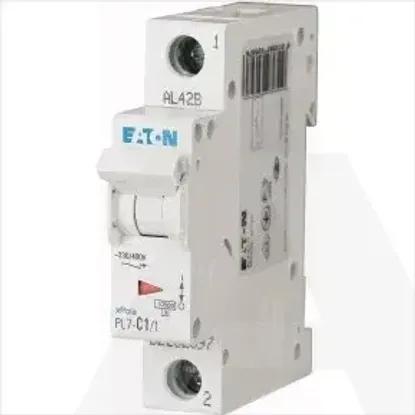

PL7-C1/1
