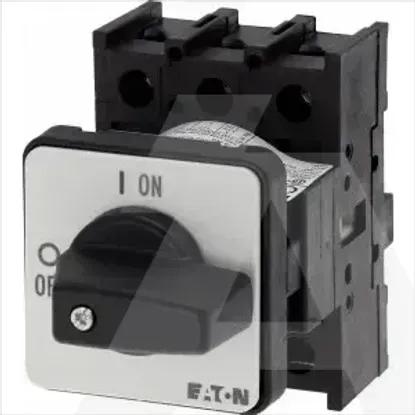

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height70mm
Number of auxiliary contacts as normally open contact0
Depth94mm
Rated permanent current Iu25A
Type of control elementShort thumb-grip
Degree of protection (IP), front sideIP65
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V7.5kW
InterlockableNo
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as main switchNo
Version as emergency stop installationNo
Width49mm
Number of poles3
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq80kA
Number of switches1
Rated permanent current at AC-23, 400 V25A
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
With pre-assembled cablingNo
Voltage release optionalNo
Rated short-time withstand current lcw0.64kA
Switching power at 400 V13kW
Motor drive optionalNo
Suitable for intermediate mountingNo
Degree of protection (NEMA)12
Rated permanent current at AC-21, 400 V25A
Rated operation power at AC-23, 400 V13kW
Suitable for front mounting 4-holeYes
Version as maintenance-/service switchNo
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Colour control elementBlack
Suitable for floor mountingNo
