Details

  • •Circuit breakers and fuses

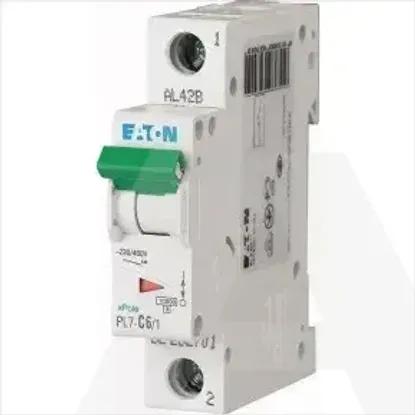

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Frequency50 - 60Hz
Rated insulation voltage Ui440V
Built-in depth70.5mm
Connectable conductor cross section solid-core1 - 25mm²
Current limiting class3
Additional equipment possibleYes
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 75°C
Pollution degree2
Suitable for flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Connectable conductor cross section multi-wired1 - 25mm²
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Number of poles (total)1
Release characteristicB
Voltage typeAC
Number of protected poles1
Rated current6A
