Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Degree of protection (IP)IP20
Release characteristicC
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Number of poles (total)1
Frequency0 - 0Hz
Rated current6A
Ambient temperature during operating-25 - 75°C
Width in number of modular spacings1
Connectable conductor cross section multi-wired1 - 25mm²
Pollution degree2
Rated impulse withstand voltage Uimp4kV
Number of protected poles1
Current limiting class3
Connectable conductor cross section solid-core1 - 25mm²
Over voltage category3
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Rated voltage220V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated insulation voltage Ui440V
Built-in depth70.5mm
Flush-mounted installationNo
Explosion-proofNo
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

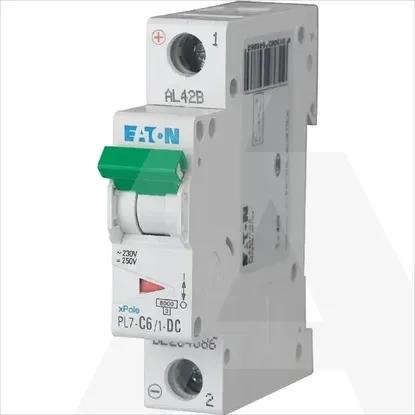

PL7-C6/1-DC
