Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Height140mm
Width55mm
With integrated under voltage releaseNo
Power loss20.7W
With integrated auxiliary switchNo
Rated operating voltage690 - 690V
Device constructionBuilt-in device fixed built-in technique
With thermal protectionNo
Rated operation power at AC-3, 230 V11kW
Rated permanent current Iu40A
Adjustment range undelayed short-circuit release620 - 620A
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
Rated operation power at AC-3, 400 V20kW
Degree of protection (IP)IP20
Switch off techniqueThermomagnetic
Type of electrical connection of main circuitScrew connection
Overload release current setting32 - 40A
Depth160mm
Type of control elementTurn button
Phase failure sensitiveYes
Number of poles3
Related products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

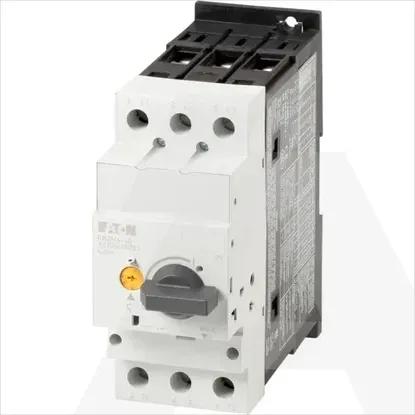

PKZM4-40
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specificationsRelated productsFrom same serie
Technical specifications
Height
140mm
Width
55mm
With integrated under voltage release
Power loss
20.7W
With integrated auxiliary switch
Rated operating voltage
690 .. 690V
Device construction
Built-in device fixed built-in technique
With thermal protection
Rated operation power at AC-3, 230 V
11kW
Rated permanent current Iu
40A
Adjustment range undelayed short-circuit release
620 .. 620A
Rated short-circuit breaking capacity lcu at 400 V, AC
50kA
Rated operation power at AC-3, 400 V
20kW
Degree of protection (IP)
IP20
Switch off technique
Thermomagnetic
Type of electrical connection of main circuit
Screw connection
Overload release current setting
32 .. 40A
Depth
160mm
Type of control element
Turn button
Phase failure sensitive
Number of poles
3
