Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width45mm
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V6.6A
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact1
Rated operation current Ie at AC-1, 400 V22A
Modular versionNo
Rated operation power at AC-3, 400 V3kW
Depth52mm
Number of auxiliary contacts as normally closed contact0
Height58mm
Rated control supply voltage Us at AC 60HZ230 - 230V
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Operating voltage at AC 50 Hz24 - 690V
Rated operation power NEMA2.2kW
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-4, 400 V5A
Operating voltage at AC 60 Hz24 - 690V
Rated operation power at AC-4, 400 V2.2kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

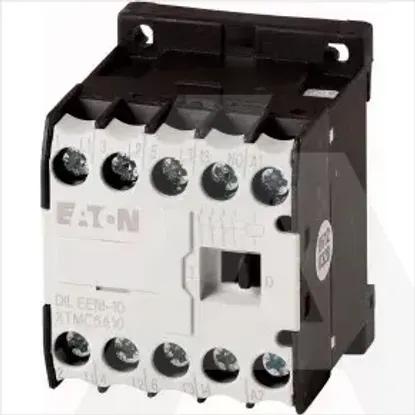

DILEEM-10(230V50/60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
45mm
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-3, 400 V
6.6A
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
1
Rated operation current Ie at AC-1, 400 V
22A
Modular version
Rated operation power at AC-3, 400 V
3kW
Depth
52mm
Number of auxiliary contacts as normally closed contact
0
Height
58mm
Rated control supply voltage Us at AC 60HZ
230 .. 230V
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Rated control supply voltage Us at DC
0 .. 0V
Voltage type for actuating
AC
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation power NEMA
2.2kW
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-4, 400 V
5A
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation power at AC-4, 400 V
2.2kW
