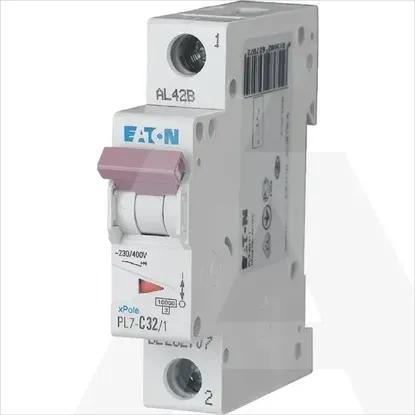

PL7-C32/1
Code: 1015154
ManufacturerEaton
Catalog number262707
TypePL7-C32/1
CategoryMiniature circuit breaker (MCB)
EAN code4015082627072
Details
- •Automatski osigurac C32, 1 polni, 10 kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Built-in depth70.5mm
Over voltage category3
Frequency50 - 60Hz
Current limiting class3
Pollution degree2
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired1 - 25mm²
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-25 - 75°C
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeAC
Release characteristicC
Explosion-proofNo
Number of poles (total)1
Number of protected poles1
Rated current32A
Width in number of modular spacings1
Concurrently switching neutral conductorNo
