Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Release characteristicC
Frequency50 - 60Hz
Built-in depth70.5mm
Rated voltage230V
Rated current6A
Voltage typeAC
Suitable for flush-mounted installationNo
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Over voltage category3
Width in number of modular spacings1.5
Concurrently switching neutral conductorYes
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
Additional equipment possibleYes
Pollution degree2
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Number of protected poles1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

PL7-C6/1N

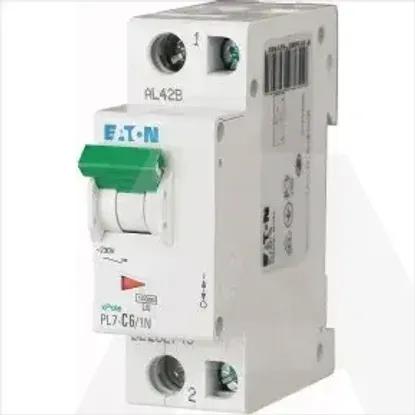

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Release characteristic

C

Frequency

50 .. 60Hz

Built-in depth

70.5mm

Rated voltage

230V

Rated current

6A

Voltage type

AC

Suitable for flush-mounted installation

Current limiting class

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Over voltage category

3

Width in number of modular spacings

1.5

Concurrently switching neutral conductor

Rated insulation voltage Ui

440V

Connectable conductor cross section solid-core

1 .. 25mm²

Degree of protection (IP)

IP20

Additional equipment possible

Pollution degree

2

Number of poles (total)

2

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0kA

Rated impulse withstand voltage Uimp

4kV

Connectable conductor cross section multi-wired

1 .. 25mm²

Ambient temperature during operating

-25 .. 75°C

Number of protected poles

1
