Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Voltage typeAC
Rated current10A
Built-in depth70.5mm
Frequency50 - 60Hz
Suitable for flush-mounted installationNo
Rated insulation voltage Ui440V
Concurrently switching neutral conductorYes
Over voltage category3
Number of protected poles1
Current limiting class3
Rated voltage230V
Width in number of modular spacings1.5
Degree of protection (IP)IP20
Pollution degree2
Release characteristicC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of poles (total)2
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Additional equipment possibleYes
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

PL7-C10/1N

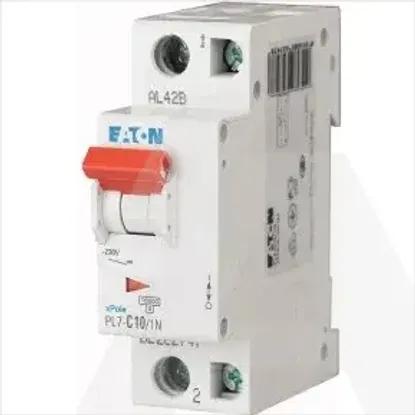

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Voltage type

AC

Rated current

10A

Built-in depth

70.5mm

Frequency

50 .. 60Hz

Suitable for flush-mounted installation

Rated insulation voltage Ui

440V

Concurrently switching neutral conductor

Over voltage category

3

Number of protected poles

1

Current limiting class

3

Rated voltage

230V

Width in number of modular spacings

1.5

Degree of protection (IP)

IP20

Pollution degree

2

Release characteristic

C

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0kA

Connectable conductor cross section solid-core

1 .. 25mm²

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Number of poles (total)

2

Ambient temperature during operating

-25 .. 75°C

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0kA

Additional equipment possible

Connectable conductor cross section multi-wired

1 .. 25mm²

Rated impulse withstand voltage Uimp

4kV
