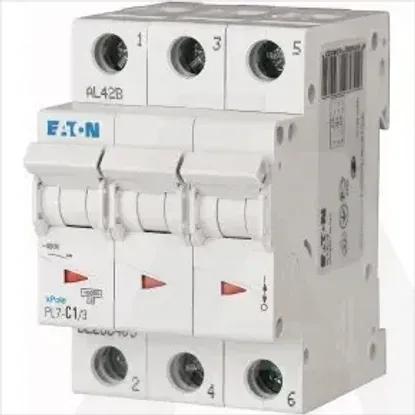

PL7-C1/3
Code: 1015162
ManufacturerEaton
Catalog number263403
TypePL7-C1/3
CategoryMiniature circuit breaker (MCB)
EAN code4015082634032
Details
- •Automatski osigurac C1, 3 polni, 10 kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Voltage typeAC
Built-in depth70.5mm
Frequency50 - 60Hz
Degree of protection (IP)IP20
Width in number of modular spacings3
Current limiting class3
Over voltage category3
Rated insulation voltage Ui440V
Pollution degree2
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of protected poles3
Rated current1A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
