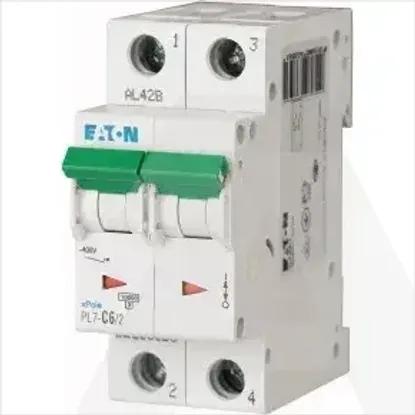

PL7-C6/2
Code: 1015169
ManufacturerEaton
Catalog number263356
TypePL7-C6/2
CategoryMiniature circuit breaker (MCB)
EAN code4015082633561
Details
- •Automatski osigurac C6, 2 polni, 10 kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Built-in depth70.5mm
Frequency50 - 60Hz
Pollution degree2
Current limiting class3
Over voltage category3
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Concurrently switching neutral conductorNo
Number of protected poles2
Voltage typeAC
Rated current6A
Release characteristicC
Number of poles (total)2
Width in number of modular spacings2
