Details

  • •Circuit breakers and fuses

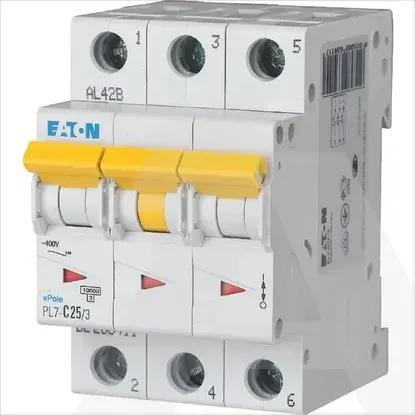

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Current limiting class3
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Built-in depth70.5mm
Frequency50 - 60Hz
Over voltage category3
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 75°C
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeAC
Explosion-proofNo
Rated current25A
Concurrently switching neutral conductorNo
Release characteristicC
Number of poles (total)3
Additional equipment possibleYes
Width in number of modular spacings3
Number of protected poles3
