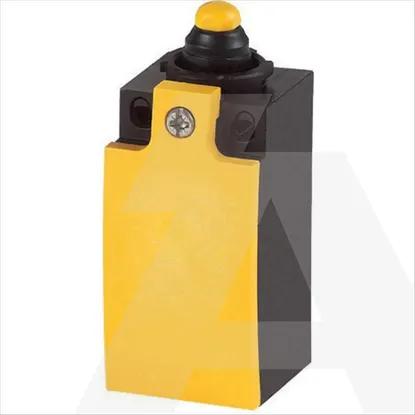

LS-11
Code: 1015212
Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Height of sensor61mm
Length of sensor33.5mm
Width sensor31mm
Diameter sensor0mm
Rated operation current Ie at DC-13, 230 V0.3A
Rated operation current Ie at DC-13, 125 V0.8A
Output electronicNo
Switching functionSlow-action switch
Number of contacts as change-over contact0
Forced openingYes
Material housingPlastic
Number of contacts as normally closed contact1
Number of safety auxiliary contacts1
Rated operation current Ie at AC-15, 125 V6A
Rated operation current Ie at DC-13, 24 V3A
Type of interfaceNone
Coating housingOther
Suitable for safety functionsYes
Ambient temperature during operating-25 - 70°C
Rated operation current Ie at AC-15, 230 V6A
Type of electric connectionCable entry metrical
Type of control elementPlunger
Construction type housingCuboid
Switching function latchingNo
Explosion safety category for dustNone
Alignment of the control elementRoller cam straight
Degree of protection (NEMA)Other
Rated operation current Ie at AC-15, 24 V6A
Type of interface for safety communicationNone
Explosion safety category for gasNone
Degree of protection (IP)IP66/IP67
With status indicationNo
Number of contacts as normally open contact1
