Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Current limiting class3
Frequency50 - 60Hz
Pollution degree2
Over voltage category3
Built-in depth70.5mm
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired1 - 25mm²
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Number of protected poles3
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Degree of protection (IP)IP20
Rated voltage400V
Width in number of modular spacings3
Rated current20A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

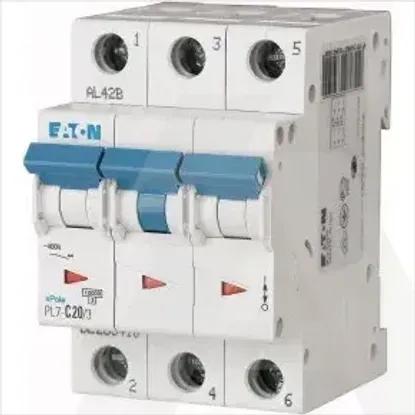

PL7-C20/3
