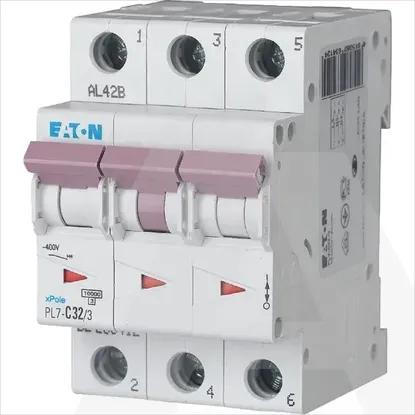

Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Frequency50 - 60Hz
Pollution degree2
Degree of protection (IP)IP20
Current limiting class3
Over voltage category3
Built-in depth70.5mm
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Release characteristicC
Number of poles (total)3
Number of protected poles3
Width in number of modular spacings3
Concurrently switching neutral conductorNo
Voltage typeAC
Rated current32A
