Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Pollution degree2
Release characteristicC
Rated current40A
Rated voltage400V
Built-in depth70.5mm
Over voltage category3
Degree of protection (IP)IP20
Additional equipment possibleYes
Current limiting class3
Number of protected poles3
Connectable conductor cross section solid-core1 - 25mm²
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Width in number of modular spacings3
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)3
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

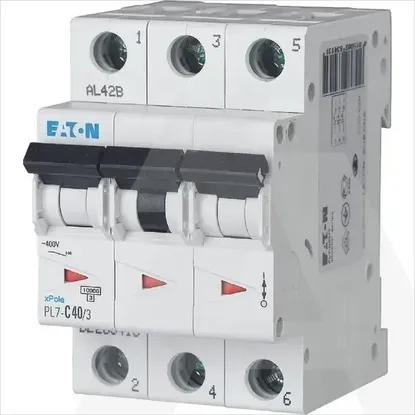

PL7-C40/3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRecommended productsFrom same serie
Technical specifications
Voltage type
AC
Pollution degree
2
Release characteristic
C
Rated current
40A
Rated voltage
400V
Built-in depth
70.5mm
Over voltage category
3
Degree of protection (IP)
IP20
Additional equipment possible
Current limiting class
3
Number of protected poles
3
Connectable conductor cross section solid-core
1 .. 25mm²
Rated insulation voltage Ui
440V
Connectable conductor cross section multi-wired
1 .. 25mm²
Ambient temperature during operating
-25 .. 75°C
Width in number of modular spacings
3
Suitable for flush-mounted installation
Concurrently switching neutral conductor
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Number of poles (total)
3
