Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated current50A
Release characteristicC
Frequency50 - 60Hz
Rated voltage400V
Built-in depth70.5mm
Voltage typeAC
Over voltage category3
Rated insulation voltage Ui440V
Width in number of modular spacings3
Current limiting class3
Pollution degree2
Degree of protection (IP)IP20
Number of protected poles3
Number of poles (total)3
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Additional equipment possibleYes
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Connectable conductor cross section multi-wired1 - 25mm²
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

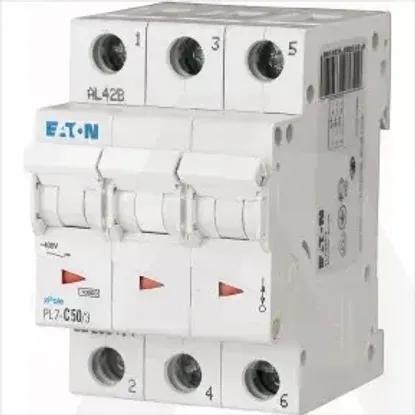

PL7-C50/3
