Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Degree of protection (IP)IP20
Voltage typeDC
Built-in depth70.5mm
Suitable for flush-mounted installationNo
Rated current10A
Rated voltage220V
Width in number of modular spacings2
Release characteristicC
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Connectable conductor cross section multi-wired1 - 25mm²
Number of protected poles2
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Over voltage category3
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Rated insulation voltage Ui440V
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Additional equipment possibleYes
Frequency0 - 0Hz
Concurrently switching neutral conductorNo
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

PL7-C10/2-DC

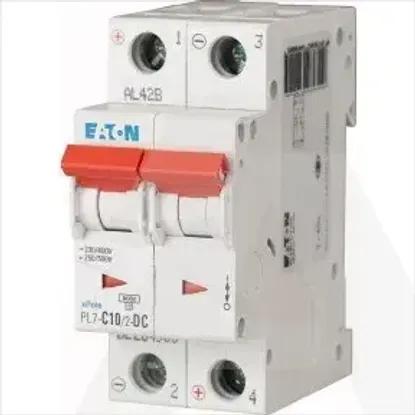

Main Product Image

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Degree of protection (IP)

IP20

Voltage type

DC

Built-in depth

70.5mm

Suitable for flush-mounted installation

Rated current

10A

Rated voltage

220V

Width in number of modular spacings

2

Release characteristic

C

Ambient temperature during operating

-25 .. 75°C

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Connectable conductor cross section multi-wired

1 .. 25mm²

Number of protected poles

2

Connectable conductor cross section solid-core

1 .. 25mm²

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Over voltage category

3

Rated impulse withstand voltage Uimp

4kV

Number of poles (total)

2

Rated insulation voltage Ui

440V

Current limiting class

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Additional equipment possible

Frequency

0 .. 0Hz

Concurrently switching neutral conductor

Pollution degree

2

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
