Details
- •Low-voltage industrial components

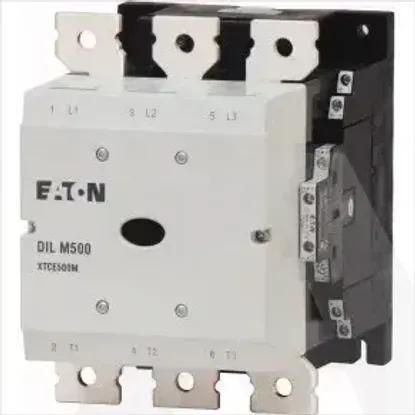

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width160mm
Modular versionNo
Height219mm
Depth216mm
Rated control supply voltage Us at AC 60HZ110 - 250V
Rated control supply voltage Us at AC 50HZ110 - 250V
Rated operation current Ie at AC-3, 400 V500A
Number of normally open contacts as main contact3
Rated operation power at AC-3, 400 V250kW
Number of auxiliary contacts as normally closed contact2
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V800A
Number of auxiliary contacts as normally open contact2
Rated operation current Ie at AC-4, 400 V360A
Rated operation power NEMA298kW
Rated operation power at AC-4, 400 V200kW
Voltage type for actuatingAC/DC
Type of electrical connection of main circuitRail connection
Rated control supply voltage Us at DC110 - 250V
Operating voltage at AC 60 Hz110 - 250V
Operating voltage at AC 50 Hz110 - 250V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM500/22(RA250)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
160mm
Modular version
Height
219mm
Depth
216mm
Rated control supply voltage Us at AC 60HZ
110 .. 250V
Rated control supply voltage Us at AC 50HZ
110 .. 250V
Rated operation current Ie at AC-3, 400 V
500A
Number of normally open contacts as main contact
3
Rated operation power at AC-3, 400 V
250kW
Number of auxiliary contacts as normally closed contact
2
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-1, 400 V
800A
Number of auxiliary contacts as normally open contact
2
Rated operation current Ie at AC-4, 400 V
360A
Rated operation power NEMA
298kW
Rated operation power at AC-4, 400 V
200kW
Voltage type for actuating
AC/DC
Type of electrical connection of main circuit
Rail connection
Rated control supply voltage Us at DC
110 .. 250V
Operating voltage at AC 60 Hz
110 .. 250V
Operating voltage at AC 50 Hz
110 .. 250V
