Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Over voltage category3
Rated current2A
Rated voltage220V
Frequency0 - 0Hz
Built-in depth70.5mm
Current limiting class3
Suitable for flush-mounted installationNo
Number of protected poles2
Release characteristicC
Degree of protection (IP)IP20
Width in number of modular spacings2
Rated insulation voltage Ui440V
Voltage typeDC
Pollution degree2
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Additional equipment possibleYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

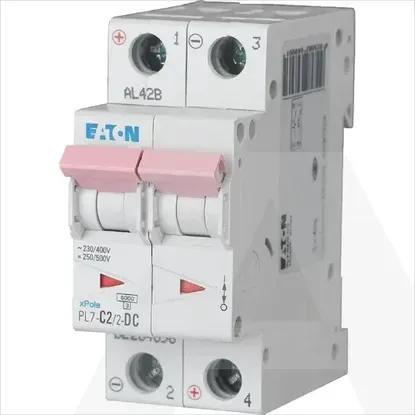

PL7-C2/2-DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Over voltage category
3
Rated current
2A
Rated voltage
220V
Frequency
0 .. 0Hz
Built-in depth
70.5mm
Current limiting class
3
Suitable for flush-mounted installation
Number of protected poles
2
Release characteristic
C
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Rated insulation voltage Ui
440V
Voltage type
DC
Pollution degree
2
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
1 .. 25mm²
Connectable conductor cross section solid-core
1 .. 25mm²
Ambient temperature during operating
-25 .. 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0kA
Additional equipment possible
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
