Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Frequency50 - 60Hz
Built-in depth70.5mm
Width in number of modular spacings1
Rated insulation voltage Ui440V
Current limiting class3
Release characteristicC
Voltage typeAC
Over voltage category3
Number of protected poles1
Rated voltage230V
Rated current40A
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 25mm²
Suitable for flush-mounted installationNo
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated impulse withstand voltage Uimp4kV
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

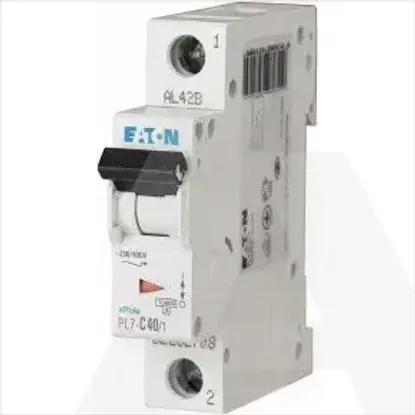

PL7-C40/1
