Details

  • •Circuit breakers and fuses

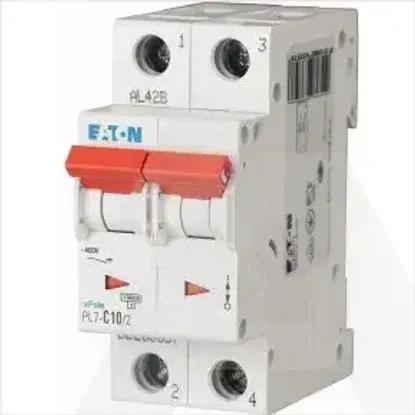

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Pollution degree2
Rated insulation voltage Ui440V
Over voltage category3
Built-in depth70.5mm
Suitable for flush-mounted installationNo
Current limiting class3
Frequency50 - 60Hz
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated impulse withstand voltage Uimp4kV
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated current10A
Voltage typeAC
Additional equipment possibleYes
Number of protected poles2
Release characteristicC
Number of poles (total)2
Concurrently switching neutral conductorNo
Width in number of modular spacings2
