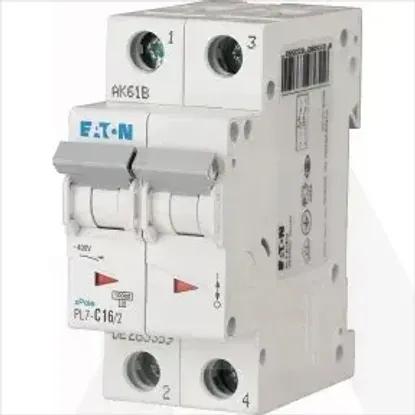

PL7-C16/2
Code: 1015620
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Degree of protection (IP)IP20
Voltage typeAC
Built-in depth70.5mm
Suitable for flush-mounted installationNo
Rated current16A
Rated voltage400V
Width in number of modular spacings2
Release characteristicC
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section multi-wired1 - 25mm²
Number of protected poles2
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Over voltage category3
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Rated insulation voltage Ui440V
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Additional equipment possibleYes
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
