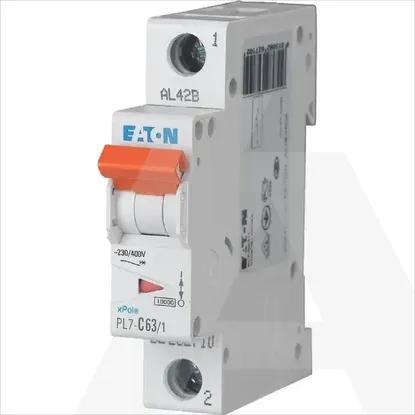

PL7-C63/1
Code: 1015672
ManufacturerEaton
Catalog number262710
TypePL7-C63/1
CategoryMiniature circuit breaker (MCB)
EAN code4015082627102
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Rated insulation voltage Ui440V
Built-in depth70.5mm
Rated impulse withstand voltage Uimp4kV
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Frequency50 - 60Hz
Current limiting class3
Additional equipment possibleYes
Over voltage category3
Pollution degree2
Flush-mounted installationNo
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Concurrently switching neutral conductorNo
Release characteristicC
Rated current63A
Voltage typeAC
Number of poles (total)1
Width in number of modular spacings1
Number of protected poles1
From same serie
