Details

  • •Circuit breakers and fuses

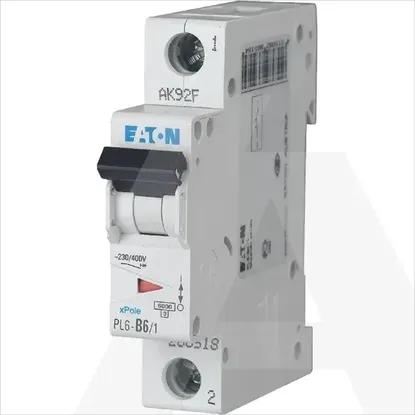

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Frequency50 - 60Hz
Voltage typeAC
Built-in depth70.5mm
Rated insulation voltage Ui440V
Current limiting class3
Over voltage category3
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Suitable for flush-mounted installationNo
Degree of protection (IP)IP20
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated voltage230V
Number of protected poles1
Width in number of modular spacings1
Rated current6A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
