Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Rated voltage400V
Release characteristicB
Width in number of modular spacings3
Built-in depth70.5mm
Number of protected poles3
Over voltage category3
Current limiting class3
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired1 - 25mm²
Rated current6A
Concurrently switching neutral conductorNo
Pollution degree2
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1 - 25mm²
Additional equipment possibleYes
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of poles (total)3
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

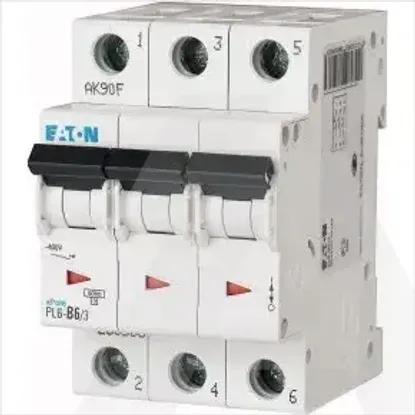

PL6-B6/3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRelated productsRecommended productsFrom same serie
Technical specifications
Voltage type
AC
Rated voltage
400V
Release characteristic
B
Width in number of modular spacings
3
Built-in depth
70.5mm
Number of protected poles
3
Over voltage category
3
Current limiting class
3
Rated insulation voltage Ui
440V
Connectable conductor cross section multi-wired
1 .. 25mm²
Rated current
6A
Concurrently switching neutral conductor
Pollution degree
2
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 .. 75°C
Connectable conductor cross section solid-core
1 .. 25mm²
Additional equipment possible
Suitable for flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Number of poles (total)
3
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0kA
Rated impulse withstand voltage Uimp
4kV
