Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Built-in depth70.5mm
Release characteristicB
Frequency50 - 60Hz
Rated current16A
Connectable conductor cross section multi-wired1 - 25mm²
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Concurrently switching neutral conductorNo
Pollution degree2
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated voltage400V
Connectable conductor cross section solid-core1 - 25mm²
Suitable for flush-mounted installationNo
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Additional equipment possibleYes
Current limiting class3
Width in number of modular spacings3
Number of protected poles3
Ambient temperature during operating-25 - 75°C
Over voltage category3
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

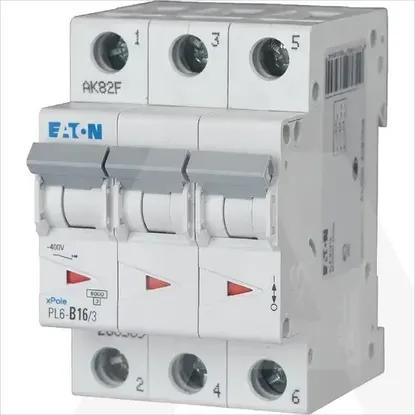

PL6-B16/3
