Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Frequency50 - 60Hz
Voltage typeAC
Built-in depth70.5mm
Release characteristicD
Rated voltage400V
Rated insulation voltage Ui440V
Over voltage category3
Current limiting class3
Pollution degree2
Degree of protection (IP)IP20
Number of protected poles3
Width in number of modular spacings3
Rated current32A
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core1 - 25mm²
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Ambient temperature during operating-25 - 75°C
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Related products
Recommended products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

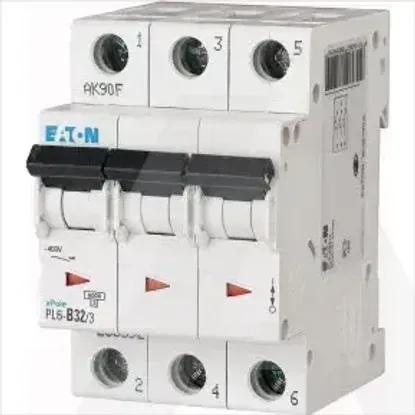

PL6-D32/3
