Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Rated current25A
Built-in depth70.5mm
Rated voltage230V
Pollution degree2
Degree of protection (IP)IP20
Current limiting class3
Concurrently switching neutral conductorNo
Rated insulation voltage Ui440V
Over voltage category3
Release characteristicB
Width in number of modular spacings1
Frequency50 - 60Hz
Suitable for flush-mounted installationNo
Number of protected poles1
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Number of poles (total)1
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

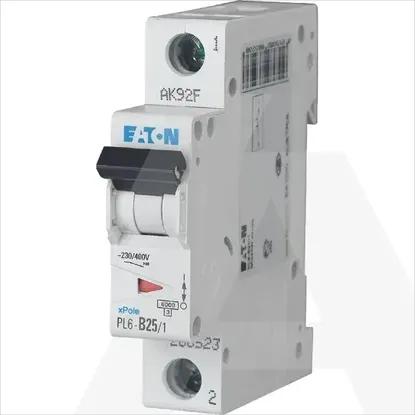

PL6-B25/1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRelated productsRecommended productsFrom same serie
Technical specifications
Voltage type
AC
Rated current
25A
Built-in depth
70.5mm
Rated voltage
230V
Pollution degree
2
Degree of protection (IP)
IP20
Current limiting class
3
Concurrently switching neutral conductor
Rated insulation voltage Ui
440V
Over voltage category
3
Release characteristic
B
Width in number of modular spacings
1
Frequency
50 .. 60Hz
Suitable for flush-mounted installation
Number of protected poles
1
Connectable conductor cross section solid-core
1 .. 25mm²
Connectable conductor cross section multi-wired
1 .. 25mm²
Ambient temperature during operating
-25 .. 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0kA
Number of poles (total)
1
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0kA
