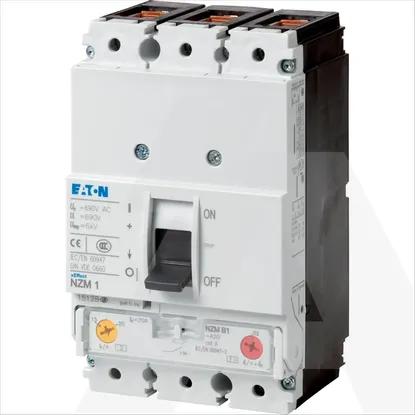

Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of poles3
With integrated under voltage releaseNo
Type of control elementRocker lever
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
Motor drive integratedNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Degree of protection (IP)IP20
Motor drive optionalNo
DIN rail (top hat rail) mounting optionalYes
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
Position of connection for main current circuitFront side
Overload release current setting80 - 100A
Adjustment range short-term delayed short-circuit release0 - 0A
Adjustment range undelayed short-circuit release600 - 1000A
Rated permanent current Iu100A
With switched-off indicatorNo
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitFrame clamp
Rated voltage690 - 690V
Number of auxiliary contacts as change-over contact0
