Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Frequency50 - 60Hz
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Ambient temperature during operating-25 - 75°C
Width in number of modular spacings3
Number of poles (total)3
Over voltage category3
Connectable conductor cross section multi-wired1 - 25mm²
Built-in depth70.5mm
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section solid-core1 - 25mm²
Current limiting class3
Rated voltage400V
Release characteristicC
Degree of protection (IP)IP20
Number of protected poles3
Additional equipment possibleYes
Rated current4A
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

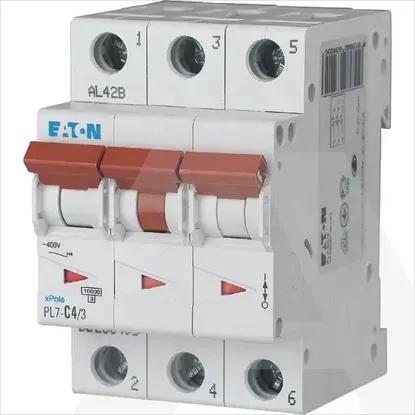

PL7-C4/3
