Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated current4A
Current limiting class3
Built-in depth70.5mm
Rated voltage230V
Release characteristicB
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Voltage typeAC
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Number of protected poles1
Suitable for flush-mounted installationNo
Width in number of modular spacings1
Pollution degree2
Over voltage category3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

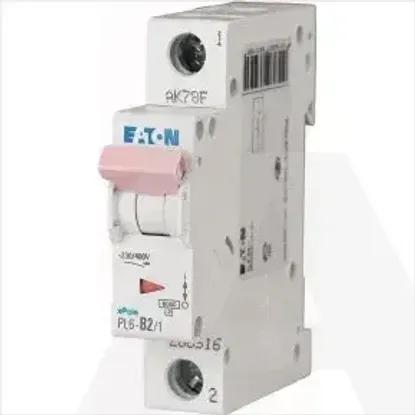

PL6-B4/1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRelated productsRecommended productsFrom same serie
Technical specifications
Rated current
4A
Current limiting class
3
Built-in depth
70.5mm
Rated voltage
230V
Release characteristic
B
Rated insulation voltage Ui
440V
Frequency
50 .. 60Hz
Voltage type
AC
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Number of protected poles
1
Suitable for flush-mounted installation
Width in number of modular spacings
1
Pollution degree
2
Over voltage category
3
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0kA
Connectable conductor cross section solid-core
1 .. 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Connectable conductor cross section multi-wired
1 .. 25mm²
Ambient temperature during operating
-25 .. 75°C
Number of poles (total)
1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated impulse withstand voltage Uimp
4kV
