Details
- •Low-voltage industrial components

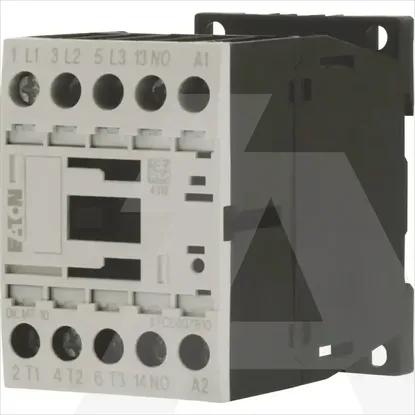

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Modular versionNo
Number of normally closed contacts as main contact0
Depth75mm
Number of auxiliary contacts as normally open contact1
Rated operation current Ie at AC-3, 400 V7A
Rated operation current Ie at AC-1, 400 V22A
Height68mm
Width45mm
Rated control supply voltage Us at AC 60HZ24 - 24V
Rated control supply voltage Us at DC0 - 0V
Rated operation power at AC-3, 400 V3kW
Number of normally open contacts as main contact3
Rated control supply voltage Us at AC 50HZ24 - 24V
Operating voltage at AC 50 Hz24 - 690V
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact0
Operating voltage at AC 60 Hz24 - 690V
Voltage type for actuatingAC
Rated operation power at AC-4, 400 V2.2kW
Rated operation power NEMA2.2kW
Rated operation current Ie at AC-4, 400 V5A
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM7-10(24V50/60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Modular version
Number of normally closed contacts as main contact
0
Depth
75mm
Number of auxiliary contacts as normally open contact
1
Rated operation current Ie at AC-3, 400 V
7A
Rated operation current Ie at AC-1, 400 V
22A
Height
68mm
Width
45mm
Rated control supply voltage Us at AC 60HZ
24 .. 24V
Rated control supply voltage Us at DC
0 .. 0V
Rated operation power at AC-3, 400 V
3kW
Number of normally open contacts as main contact
3
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Operating voltage at AC 50 Hz
24 .. 690V
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
0
Operating voltage at AC 60 Hz
24 .. 690V
Voltage type for actuating
AC
Rated operation power at AC-4, 400 V
2.2kW
Rated operation power NEMA
2.2kW
Rated operation current Ie at AC-4, 400 V
5A
Related products
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
