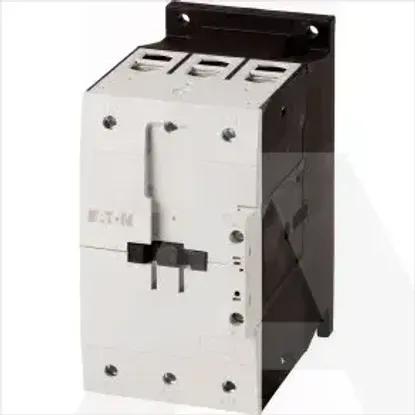

Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Modular versionNo
Rated operation power at AC-3, 400 V75kW
Depth160mm
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact0
Number of normally closed contacts as main contact0
Height170mm
Number of auxiliary contacts as normally closed contact0
Width90mm
Voltage type for actuatingAC
Rated control supply voltage Us at AC 60HZ380 - 440V
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V190A
Operating voltage at AC 60 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V65A
Rated control supply voltage Us at DC0 - 0V
Operating voltage at AC 50 Hz230 - 690V
Rated operation current Ie at AC-3, 400 V150A
Rated control supply voltage Us at AC 50HZ380 - 440V
Rated operation power NEMA93kW
Rated operation power at AC-4, 400 V33kW
