Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Built-in depth69.5mm
Rated current10A
Release characteristicC
Rated voltage230V
Voltage typeAC
Rated insulation voltage Ui440V
Current limiting class3
Surge current capacity0.25kA
Rated fault current0.03A
Leakage current typeAC
Number of protected poles1
Width in number of modular spacings2
Connectable conductor cross section solid-core1 - 25mm²
Concurrently switching neutral conductorYes
Frequency50 Hz
Degree of protection (IP)IP20
Over voltage category3
Connectable conductor cross section multi-wired1 - 25mm²
With interlocking deviceNo
Pollution degree2
Number of poles (total)2
Rated short-circuit breaking capacity according to IEC 60947-20kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 40°C
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

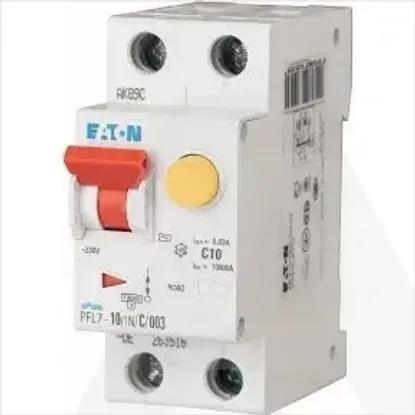

PFL7-10/1N/C/003
