Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Built-in depth69.5mm
Rated current16A
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-20kA
Leakage current typeA
Over voltage category3
Surge current capacity0.25kA
Rated fault current0.03A
Release characteristicB
Rated voltage230V
Pollution degree2
Current limiting class3
Rated insulation voltage Ui440V
Width in number of modular spacings2
Connectable conductor cross section multi-wired1 - 25mm²
Frequency50 Hz
Number of protected poles1
Concurrently switching neutral conductorYes
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core1 - 25mm²
Rated impulse withstand voltage Uimp4kV
With interlocking deviceNo
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Anti-nuisance tripping versionNo
Ambient temperature during operating-25 - 40°C
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

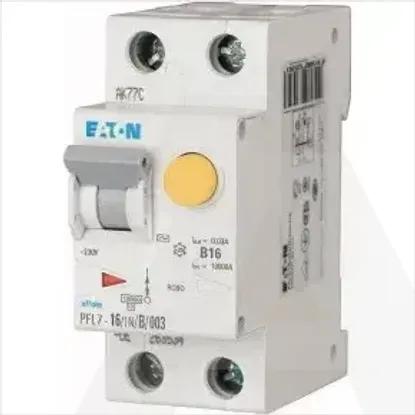

PFL7-16/1N/B/003-A
