Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Over voltage category3
Rated current25A
Built-in depth69.5mm
Release characteristicC
Rated voltage230V
Degree of protection (IP)IP20
Voltage typeAC
Suitable for flush-mounted installationNo
Rated insulation voltage Ui440V
Concurrently switching neutral conductorYes
Leakage current typeAC
Rated short-circuit breaking capacity according to IEC 60947-20kA
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Width in number of modular spacings2
Number of protected poles1
Rated fault current0.03A
Current limiting class3
Frequency50 Hz
Pollution degree2
Surge current capacity0.25kA
Ambient temperature during operating-25 - 40°C
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
With interlocking deviceNo
Rated short-circuit breaking capacity according to EN 6100910kA
Number of poles (total)2
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

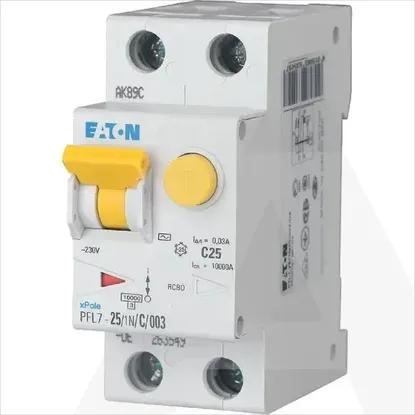

PFL7-25/1N/C/003
