Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Built-in depth69.5mm
Pollution degree2
Current limiting class3
Release characteristicB
Over voltage category3
Rated insulation voltage Ui440V
Leakage current typeAC
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity according to IEC 60947-20kA
With interlocking deviceNo
Width in number of modular spacings2
Anti-nuisance tripping versionNo
Frequency50 Hz
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 40°C
Rated current16A
Rated voltage230V
Rated fault current0.03A
Surge current capacity0.25kA
Number of protected poles1
Concurrently switching neutral conductorYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

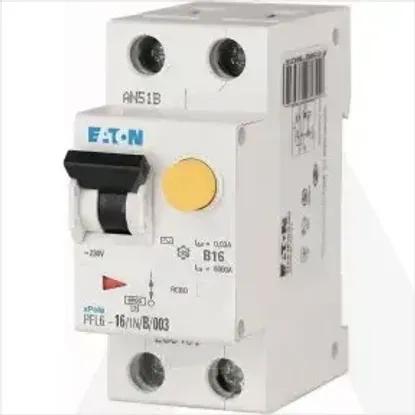

PFL6-16/1N/B/003
