Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Frequency50 - 60Hz
Concurrently switching neutral conductorYes
Current limiting class3
Width in number of modular spacings1.5
Over voltage category3
Rated voltage230V
Voltage typeAC
Number of protected poles1
Release characteristicC
Degree of protection (IP)IP20
Rated current2A
Pollution degree2
Built-in depth70.5mm
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired1 - 25mm²
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core1 - 25mm²
Number of poles (total)2
Ambient temperature during operating-25 - 75°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

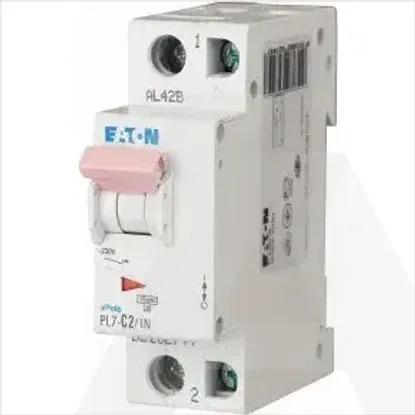

PL7-C2/1N
