Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Pollution degree2
Frequency50 - 60Hz
Rated current4A
Built-in depth70.5mm
Release characteristicC
Rated voltage230V
Over voltage category3
Current limiting class3
Width in number of modular spacings1.5
Rated insulation voltage Ui440V
Voltage typeAC
Concurrently switching neutral conductorYes
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 25mm²
Number of protected poles1
Connectable conductor cross section multi-wired1 - 25mm²
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

PL7-C4/1N

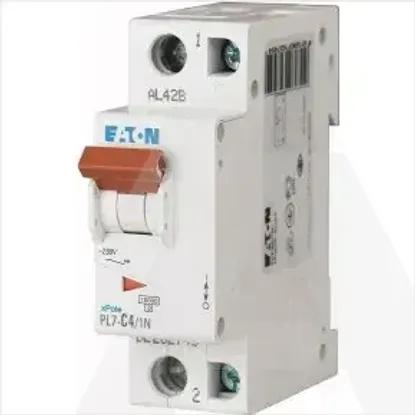

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Pollution degree

2

Frequency

50 .. 60Hz

Rated current

4A

Built-in depth

70.5mm

Release characteristic

C

Rated voltage

230V

Over voltage category

3

Current limiting class

3

Width in number of modular spacings

1.5

Rated insulation voltage Ui

440V

Voltage type

AC

Concurrently switching neutral conductor

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

1 .. 25mm²

Number of protected poles

1

Connectable conductor cross section multi-wired

1 .. 25mm²

Suitable for flush-mounted installation

Additional equipment possible

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0kA

Ambient temperature during operating

-25 .. 75°C

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0kA

Number of poles (total)

2

Rated impulse withstand voltage Uimp

4kV
