Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Release characteristicC
Built-in depth70.5mm
Frequency50 - 60Hz
Rated current25A
Voltage typeAC
Rated voltage400V
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1 - 25mm²
Number of poles (total)2
Width in number of modular spacings2
Over voltage category3
Connectable conductor cross section solid-core1 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Concurrently switching neutral conductorNo
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of protected poles2
Current limiting class3
Ambient temperature during operating-25 - 75°C
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

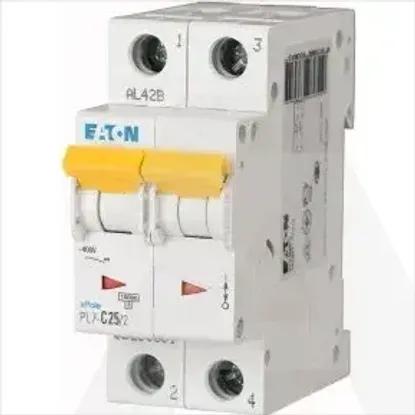

PL7-C25/2
