Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Release characteristicC
Number of protected poles2
Pollution degree2
Rated voltage400V
Current limiting class3
Rated current63A
Width in number of modular spacings2
Voltage typeAC
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Over voltage category3
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Built-in depth70.5mm
Ambient temperature during operating-25 - 75°C
Number of poles (total)2
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

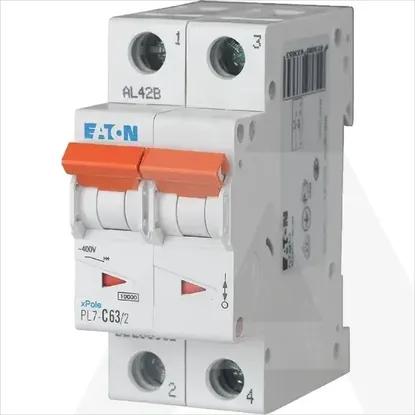

PL7-C63/2
