Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Built-in depth70.5mm
Voltage typeDC
Rated voltage220V
Rated current1A
Frequency0 - 0Hz
Current limiting class3
Over voltage category3
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Release characteristicC
Pollution degree2
Width in number of modular spacings1
Number of protected poles1
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 75°C
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

PL7-C1/1-DC

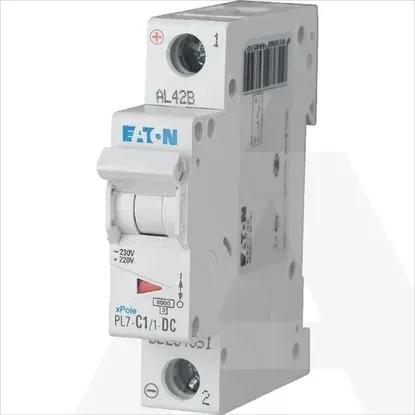

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Built-in depth

70.5mm

Voltage type

DC

Rated voltage

220V

Rated current

1A

Frequency

0 .. 0Hz

Current limiting class

3

Over voltage category

3

Degree of protection (IP)

IP20

Rated insulation voltage Ui

440V

Release characteristic

C

Pollution degree

2

Width in number of modular spacings

1

Number of protected poles

1

Connectable conductor cross section multi-wired

1 .. 25mm²

Connectable conductor cross section solid-core

1 .. 25mm²

Ambient temperature during operating

-25 .. 75°C

Suitable for flush-mounted installation

Concurrently switching neutral conductor

Number of poles (total)

1

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Additional equipment possible

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA
