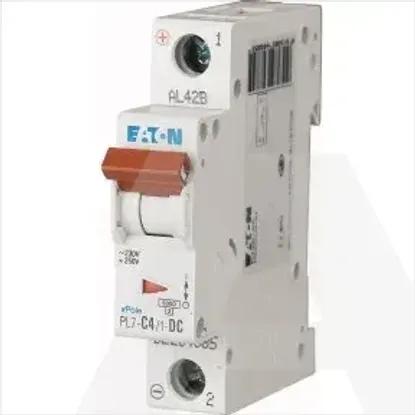

PL7-C4/1-DC
Code: 1023982
ManufacturerEaton
Catalog number264885
TypePL7-C4/1-DC
CategoryMiniature circuit breaker (MCB)
EAN code4015082648855
Details
- •Automatski osigurac C4, 1 polni, DC, 10 kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Built-in depth70.5mm
Rated voltage220V
Over voltage category3
Rated insulation voltage Ui440V
Frequency0 - 0Hz
Pollution degree2
Current limiting class3
Width in number of modular spacings1
Voltage typeDC
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core1 - 25mm²
Additional equipment possibleYes
Connectable conductor cross section multi-wired1 - 25mm²
Number of protected poles1
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Degree of protection (IP)IP20
Rated current4A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
