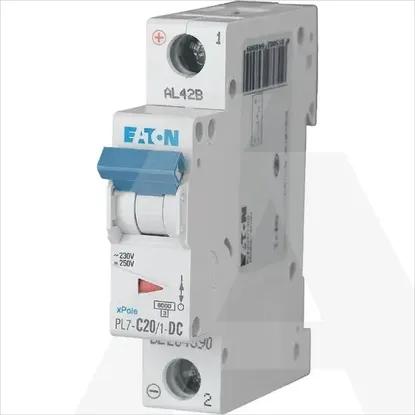

PL7-C20/1-DC
Code: 1023984
ManufacturerEaton
Catalog number264890
TypePL7-C20/1-DC
CategoryMiniature circuit breaker (MCB)
EAN code4015082648909
Details
- •Automatski osigurac C20, 1 polni, DC, 10 kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Built-in depth70.5mm
Rated voltage250V
Current limiting class3
Pollution degree2
Over voltage category3
Rated insulation voltage Ui440V
Voltage typeDC
Frequency0 - 0Hz
Degree of protection (IP)IP20
Number of protected poles1
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Suitable for flush-mounted installationNo
Rated current20A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
