Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth70.5mm
Frequency0 - 0Hz
Rated current20A
Voltage typeDC
Release characteristicC
Rated voltage250V
Rated insulation voltage Ui440V
Over voltage category3
Current limiting class3
Pollution degree2
Width in number of modular spacings2
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 25mm²
Concurrently switching neutral conductorNo
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Additional equipment possibleYes
Suitable for flush-mounted installationNo
Number of poles (total)2
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 75°C
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

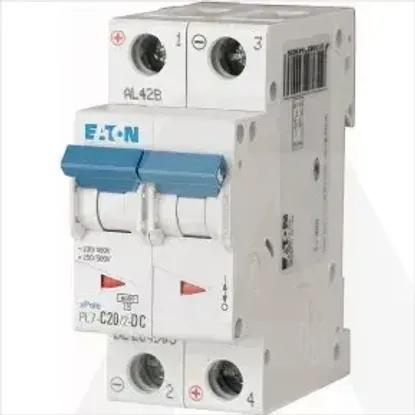

PL7-C20/2-DC
