Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth75mm
Voltage typeAC
Rated current20A
Rated voltage400V
Release characteristicC
Current limiting class3
Pollution degree2
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Additional equipment possibleYes
Frequency50 - 60Hz
Number of poles (total)4
Over voltage category3
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Width in number of modular spacings6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Suitable for flush-mounted installationNo
Number of protected poles3
Connectable conductor cross section multi-wired2.5 - 50mm²
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core2.5 - 50mm²
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

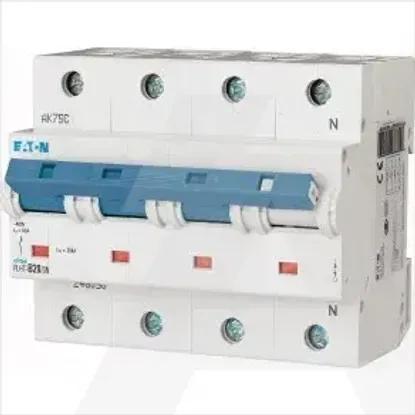

PLHT-C20/3N
