Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Rated current63A
Built-in depth70.5mm
Rated voltage400V
Frequency50 - 60Hz
Degree of protection (IP)IP20
Over voltage category3
Pollution degree2
Current limiting class3
Rated insulation voltage Ui440V
Width in number of modular spacings3
Release characteristicB
Number of protected poles3
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core1 - 25mm²
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired1 - 25mm²
Number of poles (total)3
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Related products
Recommended products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

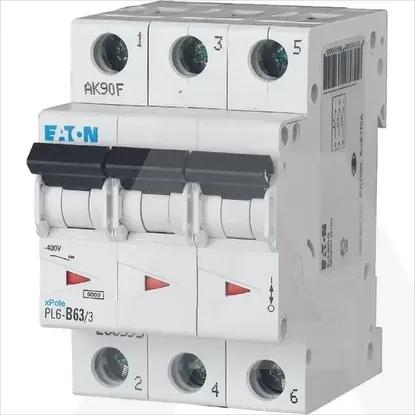

PL6-B63/3
